Effects of Adding Pretreated Chestnut (Bertholletia excelsa) Mesocarp Fibers to Fiber-Cement Boards

Chemical characterization

The chemical properties of the NT and T fibers were assessed according to the following standards. The contents of extractives soluble in alcohol and in distilled water were determined using TAPPI T 204 cm-07 and TAPPI T 207 cm-08, respectively. The ash content was determined as per the ASTM D 1762 standard (2013). The holocellulose content was determined according to TAPPI T 9 wd75 via the Jayme-Wise method. Finally, the lignin content was measured using the acid-insoluble (Klason) lignin method as described in TAPPI T 222 om11.

Physical and mechanical evaluation

The physical properties of the fiber-cement boards were evaluated as follows. The moisture content was measured for each board (N=10) using the gravimetric method as described in ASTM C1185-08 (2016). The density of each board was determined (N=6) while following DIN EN ISO 52361:1965-04 (2004b). Additionally, the water absorption capacity and corresponding volumetric swelling were measured (N=5) in accordance with DIN EN ISO 52364:2011 (2004c).

The mechanical properties evaluated included the MOR, determined via static bending tests (N=3) as per DIN EN ISO 52362:2011 (2004a), and the thickness reduction under compression (N=4), tested in accordance with ASTM-C1186-22 (2022).

Chemical characterization

The chemical composition of both NT and T fibers was quantified, including the percentages of alcohol-soluble extractives, water-soluble extractives, holocellulose, lignin, ash, and moisture.

When ethanol was used as the solvent, the extractives content was 1.25% for the NT fibers and 1.27% for the T fibers. The alkaline pretreatment with the 10% NaOH solution led to a notable decrease in holocellulose content, which dropped from 73.77% (NT) to 68.45% (T). In contrast, the lignin content remained relatively unchanged at 30.68% (NT) and 30.53% (T). The ash content was significantly higher in pretreated fibers, measuring 1.30% compared to 0.93% (NT). Additionally, the alkaline pretreatment reduced the moisture content of the fibers.

Scanning electron microscopy

Representative SEM images of the NT and T fibers, captured at magnifications of 400 and 800x, are presented in Figure 2.

c) SEM: image of T fibers at 400x, d) SEM image of T fibers at 800x.

A microstructural analysis revealed that the fibrillar elements exhibited a slenderness ratio greater than 1, confirming their characteristic fibrous morphology. The fibers were fractionated by size into five distinct categories using a Bauer-McNett classifier. The classification results, including the corresponding sieve numbers and the nominal size ranges of the retained fiber fractions, are detailed in Table 1, following the TAPPI T 233 cm-06 standard (2006).

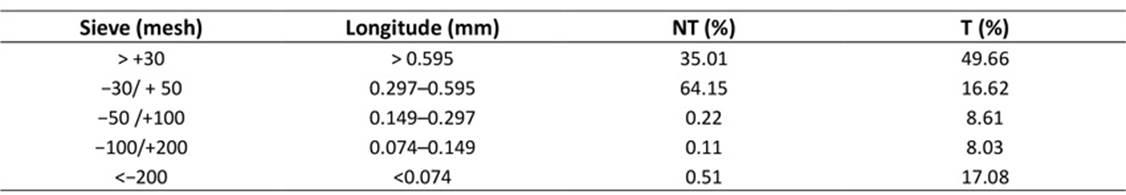

Table 1: Bauer-McNett fiber classification of fibers without pretreatment (NT) and with an alkaline pretreatment (T)

As shown in Table 1, most of the NT fibers (64.15%) were classified within the 0.297-0.595 mm length fraction. In contrast, the T fibers were predominantly longer, with 49.66% in the fraction exceeding 0.595 mm. This distribution indicates that the alkaline pretreatment resulted in a higher proportion of longer fibers compared to the untreated sample.

Physical and mechanical evaluation

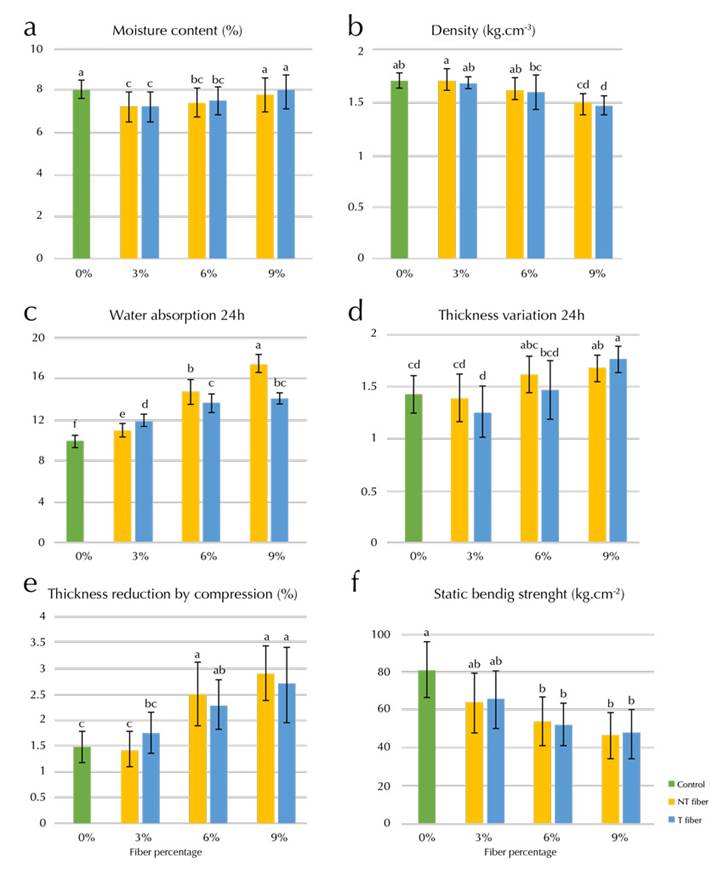

The results of the physical and mechanical evaluations are presented in Figure 3. The data indicate a positive correlation between fiber content and water retention in the fiber-cement boards. Specifically, the moisture content increased with higher fiber percentages.

Figure 3: Physical and mechanical properties of the fiber-cement boards without pretreatment (NT) and with an alkaline pretreatment (T). a) Moisture content (%); b) density g.cm−3; c) water absorption over 24 h (%); d) wáter variation over 24 h (%); e) thickness reduction under compression (%); f) static flexural strength in (kg.cm−2).

For the boards reinforced with NT fibers, the moisture content was 7.19% at a 3% fiber concentration, rising to 7.42% and 7.79% for samples with 6 and 9% fiber, respectively. A similar trend was observed for the T fibers, with moisture contents of 7.19, 7.51, and 7.95% at fiber concentrations of 3, 6, and 9%. The alkaline pretreatment with NaOH did not result in a significantly different moisture content in comparison with the untreated fibers.

Conversely, the mechanical properties, specifically the thickness reduction under compression and the MOR under static bending, exhibited a decreasing trend with increasing fiber content for both the NT and T fiber-reinforced boards. The highest average flexural strength (MOR) was observed in the pure cement boards (0% fiber), with a value of 81.15 kg.cm⁻². The boards containing 3% fiber demonstrated intermediate MOR values, ranging from 63.81 to 65.38 kg.cm⁻², with no statistically significant difference observed between NT and T fibers at this concentration. The lowest MOR values, which were significantly lower, were recorded for boards with 9% fiber, averaging between 46.61 and 47.22 kg.cm⁻². This represents a reduction of approximately 50% compared to the pure cement boards. This decline in flexural performance with higher fiber loading is likely attributable to an inadequate matrix-fiber adhesion, resulting in poor stress transfer and stress concentration at the interface.

Scanning electron microscopy

Figure 4 presents representative SEM images of the fracture surfaces of the boards reinforced with 3, 6, and 9% NT and T fibers.

Figure 4: SEM images of the fiber-cement boards: a) NT at 3%, 2000x magnification; b) NT at 6%, 2000x; c) NT at 9%, 2000x; d) T at 3%, 2000; e) T at 6%, 2000x; f) T at 9%, 2000x.

At a higher magnification (2000x), the board with 3% NT fibers (Figure 4a) exhibits a relatively compact matrix with localized regions of fiber aggregation (highlighted in red circles). The fiber-matrix interface shows partial cohesion, but some fibers appear to be poorly integrated, resulting in an overall acceptable distribution, albeit with zones of weak interfacial adhesion. Furthermore, the microstructure reveals delamination, microcracking, and an increased porosity. These microstructural features are critical for understanding potential pathways for water ingress and environmental degradation, which can compromise the long-term durability of the material (Kurpińska et al., 2022).

Fourier-transformed infrared spectroscopy

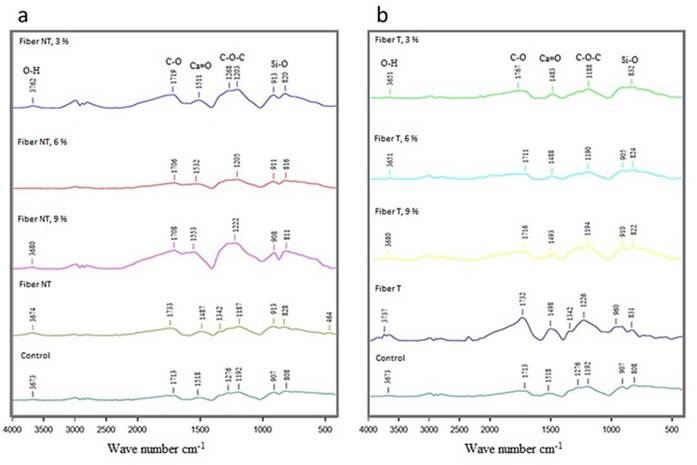

Figure 5 presents the FTIR spectra of the fiber-reinforced boards. The profiles for the samples containing NT fibers (Figure 5a) and T fibers (Figure 5b) exhibit notable similarity.

Figure 5: Fourier-transformed infrared spectroscopy analysis of a) the NT fiberboards and b) the T fiberboards

A characteristic band associated with cement hydration was observed in all samples within the range of 800-1000 cm⁻¹, corresponding to the Si-O stretching vibration in the silicate chains of calcium silicate hydrate (C-S-H). Additionally, a band in the range of 1400-1480 cm⁻¹, attributed to the asymmetric stretching vibration of carbonate ions (CO₃²⁻), was identified in all compositions. This band is typical of carbonation products in hydrated cement systems and is primarily associated with calcium carbonate (CaCO₃). The presence of these bands was consistent across all fiber types and loading levels (3, 6, and 9% content for both NT and T fibers) (Yusuf, 2023).

Chemical characterization

An alkaline pretreatment with NaOH was employed to reduce the hemicellulose content of the samples. This process is advantageous, as soluble extractives such as sugars and starches can inhibit cement hydration and delay setting (Llerena, 2014). Compared to ethanol extraction, hot water extraction yielded a higher proportion of soluble compounds from both fiber types, indicating its greater efficacy in removing extractives. This result is consistent with findings reported by Karaseva et al. (2019) for chestnut pericarp fibers. When ethanol was used as the solvent, the extractives content was 1.25% for the NT fibers and 1.27% for the T fibers. This negligible difference indicates that the alkaline pretreatment did not significantly affect the concentration of ethanol-soluble compounds, which is consistent with prior research (Teixeira et al., 2020). It is generally accepted that the total extractive content in fibers should not exceed 2.25% for optimal compatibility with cement. Extractives such as waxes, fats, and phenolic compounds can impair adhesion at the fiber-matrix interface. Their hydrophobic nature inhibits bonding with the hydrophilic cementitious binder, forming a barrier that reduces the stress transfer efficiency (Fernández-Carrasco et al., 2014). Furthermore, water-soluble extractives like sugars, tannins, and colorants can interfere with cement hydration kinetics, delaying setting time and compromising the development of mechanical properties (Laverde et al., 2022). An elevated extractives content may also promote microbial growth, leading to the biological degradation of the fibers and a consequent reduction in the long-term durability of the composite (Mohr et al., 2006).

The holocellulose content of the fibers, ranging from 68.45 to 73.77%, falls within the typical range reported for other plant fibers (Cipra Rodriguez et al., 2022; Çitlaci̇Fci̇ et al., 2022; Córdova et al., 2020). However, the pretreatment with the 10% NaOH solution significantly reduced the holocellulose content from 73.77% (NT) to 68.45% (T). This reduction can be attributed to the degradation of holocellulose by sodium hydroxide, which hydrolyzes low-molecular-weight sugars and amorphous constituents (Wang et al., 2014). A high holocellulose content, primarily comprising structural cellulose with linear chains and high crystallinity, is desirable since it enhances fiber rigidity and mechanical resistance. Furthermore, it facilitates efficient stress transfer from the cement matrix to the fibers, a key advantage over reinforcements with lower holocellulose content (Hincapié Rojas et al., 2020). Conversely, low holocellulose percentages indicate a reduced potential for structural reinforcement, an inferior load transfer efficiency, and a diminished durability in the alkaline environment of cement matrices (Çavdar et al., 2022). Consequently, the observed reduction in the holocellulose content of the T fibers is expected to adversely affect the mechanical performance of the composite material.

The lignin content for both fiber types was approximately 30%, which lies within the typical range for natural fibers. The specific values obtained were 30.68% for NT fibers and 30.53% for T fibers. Although the NaOH pretreatment does not directly degrade lignin, it can solubilize and modify it, thereby reducing its cement-retarding properties (Ferraz et al., 2020). Lignin contributes to fiber rigidity and mechanical resistance while acting as a protective barrier against environmental degradation (Mohr et al., 2006). It also reduces fiber hydrophilicity, decreasing moisture absorption and improving dimensional stability in fiber-cement composites (Teixeira et al., 2020) However, an excessive lignin content may compromise fiber-matrix adhesion due to its lower chemical compatibility with the hydrophilic cement matrix when compared to cellulose (Fernández-Carrasco et al., 2014). According to Wei and Meyer (2016), a higher cellulose-to-lignin ratio is desirable for optimizing the mechanical performance of fiber-cement composites. Furthermore, the stability of lignin within the cement matrix is an indicator of fiber durability, as its degradation can signal long-term composite vulnerability (Chen et al., 2022).

In summary, the presence of both holocellulose and lignin is critical for achieving optimal mechanical properties and ensuring the long-term durability of fiber-cement composites.

The ash content was significantly higher in T fibers (1.30%) than in their NT counterparts (0.93%). This increase is attributed to the alkaline pretreatment, which removes organic impurities and combustible material, thereby concentrating inorganic constituents and resulting in a higher residual ash content following combustion (Kandel et al., 2022). We observed a notable difference in moisture content between the NT fibers (8.33%) and the T fibers (4.18%). This reduction in moisture content following the alkaline pretreatment is likely due to the removal of hydrophilic components, such as hemicelluloses, from the fiber surface, as reported in previous studies (Fernández-Carrasco et al., 2014). Consequently, it is reasonable to conclude that the alkaline pretreatment not only enhances the interaction with the cement matrix but also lowers the hygroscopicity of the chestnut fibers by diminishing their moisture content. This effect is beneficial for their use as reinforcement in fiber-cement composites, wherein the goal is to regulate water absorption.

Scanning electron microscopy

Notably, the NT fibers exhibit clustered and compact cells, whereas the T fibers, viewed transversely, display plant cells that are more distinct and separated because of the alkaline treatment. The SEM images of the NT fibers (Figures 2a and 2b) reveal a surface with layers or flakes peeling at the fiber ends, suggesting potential fractures in the cell wall. Figure 3a shows a 400x micrograph of the NT fibers, displaying a fibrous bundle with an elongated, compact structure, characterized by a rough or laminated texture associated with the presence of lignin. In addition, the densely stacked strata contribute to the flow flexibility of the fibers (Wei & Meyer, 2015). The 800x micrograph of the NT fibers (Figure 2b) shows their structure is shown in finer detail, with a more pronounced and fractured texture, a scaly look, and visible wear, along with porous areas that are a part of the untreated fiber’s natural texture (Choi & Choi, 2021). The NT fibers do not exhibit significant inhomogeneity or large impurities, which is advantageous for reinforcement applications (Sonego et al., 2021).

Figures 2c and 2d provide information on the T fibers, highlighting a greater uniformity in cell alignment and a more fibrous yet tapered appearance. This observation can be attributed to the alkaline pretreatment, which partially compromises the integrity of the cell walls, enhancing the fibers' flexibility. This modification considerably improves their adhesion and compatibility with the cementitious matrix (Wei & Meyer, 2015). The 800x SEM image of the T fibers (Figure 2d) reveals a smoother surface, a typical outcome of alkaline treatments that stems from the removal of impurities, yielding a more defined cellular structure (Sonego et al., 2019). Moreover, the clear cellular differentiation suggests that the treatment partially eliminated non-cellulosic substances, resulting in a more homogeneous and defined fiber. This enhanced morphology is likely to improve the fiber's performance under mechanical stress when used as reinforcement material in composites.

In general, the NT fibers exhibit shorter lengths and smaller diameters compared to the T fibers. This notable variation in size and shape between the two fiber types is due to the fact that the T fibers used in board production were subjected to a sieving process. During this process, the fibers retained on the 40-mesh sieve (400 µm) were selected. The NT fibers did not undergo this additional processing step, so they exhibited greater heterogeneity in their morphological properties.

According to the results, that the fibers had an average length ranging from 167 to 184 μm, with coefficients of variation between 12 and 30%, suggesting considerable variability in length. Furthermore, the average diameters ranged from 0.0025 to 0.0031 mm, also exhibiting substantial variability, as reflected by coefficients of variation of 29 to 45%. The length-to-diameter (aspect) ratios, or slenderness values, were generally greater than 65 on average, indicating a moderately proportional relationship between length and width. However, the slenderness also showed high variability. Notably, the average value is comparable to the slenderness index of other natural fibers (Nagaraja Ganesh et al., 2023).

Physical and mechanical evaluations

Lilargem et al. (2022) also reported an increased moisture content in cementitious composites after the incorporation of various natural fibers, which can be attributed to the hydrophilic nature of lignocellulosic fibers. It is important to note that comparisons with other studies were qualitative but revealed consistent trends regarding the effect of fibers on moisture retention. The water absorption after 24 h for fiber-cement samples containing 3, 6, and 9% of both NT and T fibers indicated that higher fiber contents resulted in greater water absorption. The samples with 9% fiber exhibited the highest absorption levels. This trend is explained by the inherent hydrophilicity and porosity of natural fibers, which promote water penetration and retention within the composite. The alkaline pretreatment removed surface impurities, such as waxes and oils, thereby exposing polar groups more extensively and slightly enhancing the hydrophilic properties of the fibers. As a result, the pretreated fiber samples showed higher absorption compared to untreated samples with the same fiber content. These findings are consistent with those reported in previous studies (Çavdar et al., 2022; Martinelli et al., 2023), particularly concerning the increased water absorption observed in cementitious composites reinforced with natural fibers.

The density measurements of the fiber-cement boards indicated that increased fiber content resulted in reduced sample density for both fiber types. The samples containing 9% fiber exhibited the lowest density values. This inverse relationship between fiber content and density can be attributed to the lower density of the plant fibers when compared to that of Portland cement, the primary constituent of the composite matrix. Therefore, an increase in the fiber proportion was expected to result in decreased board density (Tonoli et al., 2009). This finding aligns with previous studies: Teixeira et al. (2020) reported similar outcomes when substituting asbestos fibers with natural fibers in fiber-cement composites, while Gamarra et al. (2024) observed density reductions in cementitious materials reinforced with various plant fibers.

As the fiber content increases, the thickness variation of the boards also tends to escalate. Specifically, at a 3% NT fiber content, the average thickness was 1.39 mm, compared to 1.24 mm for T fiber. At 6% fiber, the thickness increased to 1.60 mm for NT fibers and 1.45 mm for T fibers. Finally, at 9%, the thickness reached 1.66 mm for NT and 1.75 mm for T. Samples with 9% T fiber exhibited the greatest variation.

This increase in thickness with higher fiber content can be attributed to the hygroscopic and porous nature of natural fibers, which absorb water and subsequently swell. A greater proportion of fibers leads to increased water uptake and, consequently, more pronounced swelling. The alkaline pretreatment partially modifies the fiber structure, enhancing its hydrophilicity and potentially amplifying this swelling behavior, leading to more marked thickness variations in treated fiber-cement composites(Suwan et al., 2022). The reduction in thickness under compression also increased with a higher fiber content. The smallest reductions were observed in samples without fiber and in those containing 3% fiber, while the samples with 6 and 9% fiber exhibited progressively greater reductions. The results of Kruskal-Wallis tests confirmed the statistically significant differences in thickness reduction across samples with different fiber contents, regardless of fiber pretreatment. The samples with 6 and 9% fiber content showed the most pronounced reduction.

Consistent with previous findings, the board density decreased as the fiber content increased, which inversely affected mechanical properties such as the resistance to compression. Higher porosity within the material—resulting from greater fiber incorporation—facilitates compaction under compressive loads (Sales et al., 2022). In a similar research work, Gamarra et al. (2024) explained that the impact of organic aggregates (lignocellulosic fibers) on mechanical compression is contingent on the quantity used in board formation.

As the fiber content increases, so does the interaction zone, thereby introducing more potential failure points where stress can concentrate, weakening the material under load (Tonoli et al., 2009). According to the DIN EN ISO 52362:1965-04 standard (2008), fiber-cement boards with a thickness of 15 mm should have a minimum bending resistance of 17 kg.cm⁻², which is surpassed in this study, with the best performance recorded in compounds containing 3% Bertholletia excelsa mesocarp fiber.

Scanning electron microscopy

The microstructure exhibits no significant cracking, suggesting that the fibers do not introduce major discontinuities in the cement matrix. In the board with 6% NT fibers (Figure 4b), an increase in fiber clustering was observed, indicating a less uniform dispersion and a higher porosity compared to the 3% NT fiber board (Figure 4a). This implies an inferior fiber-matrix compatibility (Kurpińska et al., 2022), which can adversely affect mechanical performance and flexural strength. Reduced fiber-matrix contact in certain regions may compromise stress transfer efficiency. Figure 4c shows a sample with 9% NT fibers, where pronounced fiber clustering has led to the formation of voids and channels within the matrix, further disrupting its homogeneity. This suggests that the fiber content may exceed the capacity of the matrix for effective integration, resulting in weak zones and an increased propensity for microcracking or premature failure under stress. Increased surface roughness and initial fractures further diminish the internal cohesion of the composite.

The 2000x SEM images of the board with 3% T fibers (Figure 4d) demonstrated a more uniform microstructure, with improved adhesion between the fiber and the matrix, minimizing clusters and porosity, with no signs of cracking. This finding suggested a uniform contribution to the structural integrity, creating no weak points (Ferraz et al., 2020) and enhancing mechanical performance. The board with 6% T fibers (Figure 4e) remained consistent, showing a better fiber-cement matrix integration, with no cracks or voids. It also exhibited small pores that were uniformly distributed, indicating a good fiber-cement compatibility (Ferraz et al., 2020), possibly due to the soda (NaOH) treatment. However, the board containing 9% T fibers (Figure 4f) showed cracks, suggesting that, although the treatment improved the dispersion, the matrix continued to undergo excessive stress at a 9% T fiber concentration, with microcracks indicating fiber-induced weak points due to saturation, which affected the board’s mechanical properties (Rocco & Elices, 2009). When compared to the 3% NT fiberboard (Figure 4c), fewer fiber clusters were present, but the cracking indicated that the fiber content remains a limiting factor for material strength.

Overall, the soda treatment enhanced the fiber-matrix integration, particularly in boards produced with a 3 and 6% T fiber content, reducing clusters and porosity. However, the boards made with 9% NT and T fiber displayed signs of brittleness with cracks that could impair mechanical performance. In NT fiberboards, the increased fiber content created clusters and matrix defects, suggesting that better adhesion may reduce mechanical resistance. Thus, the optimal fiber content appears to be 3-6%, as the product showed a more uniform microstructure without any significant cracks.

Fourier-transform infrared spectroscopy

In the spectra, O-H appeared in the 3400-3650 cm⁻¹ range and was related to hydrogen bonds (Arango-Perez et al., 2023; Zavaleta-Cavero et al., 2024). For fiber-cement, this band is associated with the O-H bond produced by Portlandite (Ca(OH)²), which is a precursor to the components of hydrated cement, such as hydrated tricalcium silicate (C3SH), hydrated dicalcium silicate (C2SH), hydrated tricalcium aluminate (C3AH), and tetracyclic ferroaluminate (C4AF) (Chakraborty et al., 2013).

The aforementioned spectra displayed similar peaks, with more pronounced peaks in the boards produced with NT fiber when compared with their T counterparts, in relation to the functional groups tied to holocellulose and lignin. This can be attributed to the dissolution of lignocellulosic components under the alkaline treatment. When the T fibers were treated with NaOH, components like lignin, hemicellulose, and short, amorphous chain cellulose were removed.
