Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café

An Approach from Software Engineering to an IoT and Machine Learning Technological Solution that Allows Monitoring and Controlling Environmental Variables in a Coffee Crop

Authors

Keywords:

Internet of Things, machine learning, computer application, UML, static views, dynamic views, conceptual modeling, behavioral modeling (en).

Keywords:

Internet de las cosas, aprendizaje automático, aplicación informática, UML, vistas estáticas, vistas dinámicas, modelamiento conceptual, modelado del comportamiento (es).

References

M. Rossainz-López, Diseño orientado a objetos, México D.F., México: Universidad Autónoma de Puebla, 2012.

B. Boehm, “A view of 20th and 21st century software engineering,” in 28th Int. Conf. Soft. Eng. (ICSE '06), Shangai, China, May 2006. https://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.97.4717&rep=rep1&type=pdf DOI: https://doi.org/10.1145/1134285.1134288

IEEE, IEEE Guide to Software Design Descriptions, Piscataway, NJ, USA: IEEE, 1993.

C. Larman, UML y patrones, Madrid: Pearson, 2003.

J. Rumbaugh, I. Jacobson, and G. Booch, El lenguaje unificado de modelado: manual de referencia, Madrid: Addison Wesley, 2000.

L. Ramírez, “Diseño de una arquitectura para redes de sensores con soporte para aplicaciones de detección de eventos,” Doctoral Thesis, Universidad Politécnica de Valencia, Valencia, Spain, 2012. https://riunet.upv.es/bitstream/handle/10251/15152/tesisUPV3764.pdf

N. D. Castro C, L. E. Chamorro F, and C. A. Viteri M, “Una red de sensores inalámbricos para la automatización y control del riego localizado,” Revista de ciencias agrícolas, vol. 33, nº 2, pp. 106-116, Aug. 2016. http://dx.doi.org/10.22267/rcia.163302.57 DOI: https://doi.org/10.22267/rcia.163302.57

K. E Kendall and J. E Kendall, Analisis y diseño de sistemas, Mexico D.F., México: Prentice Hall, 2011.

E. Rozic and S. Herzovich, UML y desarrollo de software orientado a objetos, México D.F., México: Universidad de San Andrés, 2016.

R. Yeh and P. Zave, “Specifiying Software Requirements,” Proc. IEEE, vol. 68, no. 9, pp. 1077-1085, 1980. https://doi.org/10.1109/PROC.1980.11806 DOI: https://doi.org/10.1109/PROC.1980.11806

B. Boehm, “Software Engineering,” IEEE Trans. Comp., vol. 25, no. 12, pp. 1226-1241, Dec. 1976. https://doi.org/10.1109/TC.1976.1674590 DOI: https://doi.org/10.1109/TC.1976.1674590

A. N. Camacho-Zambrano, “Herramienta para el análisis de requerimientos dentro de la pequeña empresa desarrolladora de software en Bogotá D.C.,” Undergraduate Thesis, Pontificia Univesidad Javeriana, Bogotá D.C., Colombia, 2005. http://hdl.handle.net/10554/7480

R. Pressman, Ingenieria del software un enfoque práctico, Bogotá D.C., Colombia: McGraw Hill, 2010.

E. J. Naiburg and R. A. Maksimchuk, UML For Database Design, New York, NY, USA: Addison-Wesley Publishing Company, 2001.

M. Fewler, UML Gota a Gota, México D.F., México: Pearson Educación, 1999.

C. Krall, “aprenderaprogramar.com,” https://bit.ly/3srfpe9 (accessed Apr. 10, 2021).

E. Kendall and J. Kendall, Analisis y diseño de sistemas, México D.F.: Pearson Educacion, 2011.

J. Schmuller, Aprendiendo UML en 24 horas, México D.F., México: Pearson, 2000.

Universidad Carlos III de Madrid, Modelado dinámico básico, Madrid, Spain: Universidad Carlos III de Madrid, 2018.

K. Cevallos, «Ingeniería del software,» https://bit.ly/3ah5xgw (accessed Apr 12, 2021).

How to Cite

APA

Ruiz Martinez, W., and González Gómez, A. A. (2022). Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café. Ingeniería, 26(3), 465–478. https://doi.org/10.14483/23448393.18495

ACM

[1]
Ruiz Martinez, W. and González Gómez, A.A. 2022. Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café. Ingeniería. 26, 3 (Jan. 2022), 465–478. DOI:https://doi.org/10.14483/23448393.18495.

ACS

(1)
Ruiz Martinez, W.; González Gómez, A. A. Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café. Ing. 2022, 26, 465-478.

ABNT

RUIZ MARTINEZ, William; GONZÁLEZ GÓMEZ, Arnaldo Andrés. Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café. Ingeniería, [S. l.], v. 26, n. 3, p. 465–478, 2022. DOI: 10.14483/23448393.18495. Disponível em: https://revistas.udistrital.edu.co/index.php/reving/article/view/18495. Acesso em: 5 dec. 2024.

Chicago

Ruiz Martinez, William, and Arnaldo Andrés González Gómez. 2022. “Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café”. Ingeniería 26 (3):465-78. https://doi.org/10.14483/23448393.18495.

Harvard

Ruiz Martinez, W. and González Gómez, A. A. (2022) “Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café”, Ingeniería, 26(3), pp. 465–478. doi: 10.14483/23448393.18495.

IEEE

[1]
W. Ruiz Martinez and A. A. González Gómez, “Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café”, Ing., vol. 26, no. 3, pp. 465–478, Jan. 2022.

MLA

Ruiz Martinez, William, and Arnaldo Andrés González Gómez. “Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café”. Ingeniería, vol. 26, no. 3, Jan. 2022, pp. 465-78, doi:10.14483/23448393.18495.

Turabian

Ruiz Martinez, William, and Arnaldo Andrés González Gómez. “Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café”. Ingeniería 26, no. 3 (January 4, 2022): 465–478. Accessed December 5, 2024. https://revistas.udistrital.edu.co/index.php/reving/article/view/18495.

Vancouver

1.
Ruiz Martinez W, González Gómez AA. Un enfoque desde la ingeniería de software a una solución tecnológica de IoT y aprendizaje automático que permita monitorear y controlar las variables medioambientales en un cultivo de café. Ing. [Internet]. 2022 Jan. 4 [cited 2024 Dec. 5];26(3):465-78. Available from: https://revistas.udistrital.edu.co/index.php/reving/article/view/18495

Download Citation

Visitas

427

Dimensions


PlumX


Downloads

Download data is not yet available.

Recibido: 15 de agosto de 2021; Revisión recibida: 27 de agosto de 2021; Aceptado: 15 de septiembre de 2021

Abstract

Context:

Software engineering allows us to approach software design and development from the practical application of scientific knowledge. In the case of this IoT solution and the machine learning approach to the monitoring and control of environmental variables in a coffee crop, it allows us to visualize certain artifacts of the system in their interaction with users and their behavior with other artifacts or devices that constitute a technological solution.

Method:

For this work, the application of software engineering from a conceptual approach and the behavior of the system is proposed. To meet these objectives, we decided to use the Unified Modeling Language (UML) in such a way that the most important components of the technological solution could be represented from a static perspective through the use case diagrams, as well as from a dynamic viewpoint through the sequence diagrams.

Results:

Through the application of the UML, it was possible to develop the conceptual and behavioral modeling of certain artifacts and components. This knowledge allowed identifying the interaction between physical components and devices (machine to machine) and human-machine interaction, that is,the relationship between users and the processes that make up the technological solution.

Conclusions:

Through software engineering, and more specifically the UML, we were able to establish the importance of knowing the different software artifacts that make up a system or application from a different technical and functional approach, while being able to collect valuable information about the behavior of certain system artifacts, as well as the interaction between users and processes.

Keywords:

Internet of Things, machine learning, computer application, UML, static views, dynamic views, conceptual modeling, behavioral modeling..

Resumen

Contexto:

La ingeniería de software nos permite abordar el diseño y desarrollo de software desde la aplicación práctica del conocimiento científico. En el caso de esta solución de IoT y el enfoque de aprendizaje automático en el monitoreo y control de las variables medioambientales en un cultivo de café, nos permite visualizar determinados artefactos del sistema en su interacción con los usuarios y en el comportamiento con otros artefactos o dispositivos que integran una solución tecnológica.

Método:

Para el presente trabajo, se plantea la aplicación de la ingeniería del software desde un enfoque conceptual y del comportamiento del sistema. Para cumplir con estos objetivos se optó por emplear el lenguaje unificado de modelado (UML) de forma tal que se pudieran representar los componentes más importantes de la solución tecnológica desde una perspectiva estática a través de los diagramas de casos de uso y desde el punto de vista dinámico a través de los diagramas de secuencia.

Resultados:

Mediante la aplicación del UML, fue posible desarrollar el modelamiento conceptual y del comportamiento de ciertos artefactos y componentes. Este conocimiento permitió identificar la interacción entre componentes y dispositivos físicos (máquina a máquina) y la interacción hombre-máquina, es decir, la relación entre usuarios y procesos que componen la solución tecnológica.

Conclusiones:

A través de la ingeniería de software y más específicamente del UML, pudimos establecer la importancia de conocer los diferentes artefactos que componen un sistema o aplicación desde un enfoque técnico y funcional diferente, pudiendo recopilar información valiosa sobre el comportamiento de ciertos artefactos del sistema, así como de la interacción entre usuarios y procesos.

Palabras clave:

Internet de las cosas, aprendizaje automático, aplicación informática, UML, vistas estáticas, vistas dinámicas, modelamiento conceptual, modelado del comportamiento..

Introduction

Many times, we have wondered why software engineering is so important today; we cannot ignore the potential growth of the software industry at a global level. But how can we define software engineering? Let us take some valuable definitions from experts on the subject. According to [1],software engineering is the study of the principles and methodologies for the development and maintenance of software systems.

In another definition given by [2], the author defines software engineering as the practical application of scientific knowledge to the design and construction of computer programs and the associated documentation required to develop, operate, and maintain them. This is also known as software development or software production. It is the application of a systematic, disciplined, and quantifiable approach to the development, operation, and maintenance of software, that is, the application of software engineering [3].

By analyzing the above, we can develop our own definition and establish that software engineering is actually a discipline or area that is responsible for generating a series of methodologies or guidelines to develop the life cycle of the software, regardless of the adapted or implemented methodology,but always seeking to comply with each of its phases or stages through deliverables or documentation that allows supporting the functionality or interaction of an artifact or system component with other components or roles of the same system or, in certain cases, with subsystems or external systems as needed.

More specifically, we want to delve into aspects such as conceptual modeling and system behavior while using the Unified Modeling Language (UML). According to [4], UML is a standard that has been adopted internationally by numerous organizations and companies to create schematics, diagrams, and documentation related to software development (informatic programs).

According to [5], UML is the combination of three different methodologies developed by its creators, who aim for the user to understand the reality of the implemented technology, as well as giving them the possibility to make decisions before investing large amounts of money and time in projects if they are not sure about their development, and much less in the construction of artifacts that will constitute said model.

Considering the above, we can conclude that UML is a standard for the construction of software models that allows knowing the operation of certain artifacts or components of a software development,as well as the interaction that said components or artifacts may have with the users of the system, with other devices or artifacts, with subsystems of the same system, or even with other external systems.

This article presents the application of software engineering regarding the lifting of functional and non- functional requirements, conceptual modeling, and the behavior of a series of artifacts that represent certain functionalities of a technological solution based on technologies such as the Internet of Things (IoT) for data collection and artificial intelligence techniques such as machine learning for data analysis. Such integration of technologies seeks to monitor and control overall performance, as well as the performance of certain environmental variables that have an impact on a coffee crop and its production. It should be clarified that we do not intend to publicize the operation of the solution from the perspective of its technical or technological characteristics, but, as previously expressed, to provide a perspective of the technological solution from the point of view of its conceptual modeling and the behavior of its main artifacts or components.

In crops, especially coffee, the control of environmental variables is considered a vital aspect in the harvest process, since the correct evaluation of variables such as temperature, environmental humidity and soil humidity, among others, depends to a great extent on measuring the quality of the resulting grain.

Materials and methods

Research methodology

For the development of this research, the following phases we can see in fig. 1:

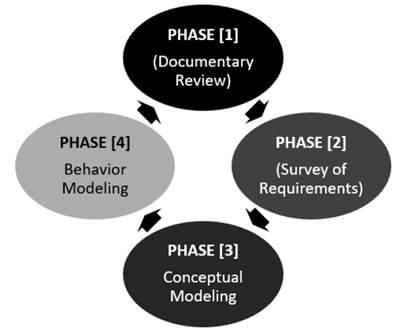

Phases of the research proposed for the development of the project

Figure 1: Phases of the research proposed for the development of the project

  1. Document review: In this phase, a review of different documents related to the proposed topic was conducted, with the aim of establishing the artifacts or components that represent the most prominent and important functionalities of the technological solution. Two approaches contemplated by the UML were used: static and dynamic views.

  2. Survey of requirements: It is carried out in accordance with the information collected to determine and document the functional and non-functional requirements of the technological solution.

  3. Conceptual modeling: A general use case diagram is presented, where the main processes of the technological solution and the interactions with users or actors are visualized. Subsequently,sub-use case diagrams of three of the main processes and their respective documentation are made.

  4. Behavioral modeling: The diagrams of the behavior part of the technological solution are elaborated. For this specific case, the construction of a component diagram and a deployment diagram is proposed.

Description of the architecture

This section presents the architecture design of the wireless network used in the project, as well as its components and devices. It also identifies the protocols used for communication, as can be seen in Fig. 2. It is a wireless sensor network (WSN), which is made up of a series of devices distributed autonomously in a growing area. The proposed system consists of three sensor nodes, and each of these nodes consists of a Lucy3 programmable card, to which a temperature and humidity sensor and a soil humidity sensor are connected. Each node is located at a distance of 100 linear meters from each other, covering a total area of 300 linear meters of coffee crops. The nodes communicate with each other wirelessly via the ZigBee protocol of the modules (Xbee Module) installed in each one. They also communicate with the Gateway, which is responsible for complementing the information sent wirelessly with a wired network. The protocol selected for the project is the ZigBee standard in an ISM 2.4 GHZ channel, with a transmission speed of 250 Kbps, and based on the IEEE 802.15.4 or IEEE 802.11 (WIFI) standards or proprietary radios, which are normally 900 MHz [6]. The Zigbee protocol was selected for the project considering factors such as low device costs, transmission distance, and low power consumption of nodes and sensors.

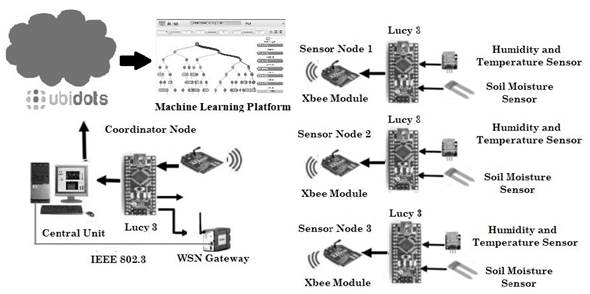

Architecture of the wireless sensor network and the cloud platforms
